IEC Accredited Transformer Lab Testing

IEC Accredited Transformer Testing Lab

Voltage Energy is an independent company that provides professional local third-party inspection, testing, certification, and calibration. This state-of-the-art facility plays a pivotal role in ensuring the highest quality, reliability, and performance of transformers.


Stringent quality assurance



The IEC-accredited third-party lab signifies adherence to national & international standards and guidelines. Every test conducted in the lab follows rigorous protocols, ensuring that the transformers meet or exceed industry benchmarks.

Our dedicated, experienced technical team performs for all types of tests in line with IEC.


We can provide you with following services:



  • Scheduled Maintenance Visits
  • Preventive Maintenance
  • Comprehensive Equipment Servicing
  • Use of Genuine Spare Parts
  • Cost-Effective Solution
  • Extended Warranty Options


Are you looking to test your transformer?

Get a quote

Types of tests

Routine tests for transformers are standard tests performed to verify the quality, performance, and safety of the transformer before it is put into operation. These tests ensure that the transformer meets design specifications and regulatory standards. Below are the key routine tests conducted on transformers:

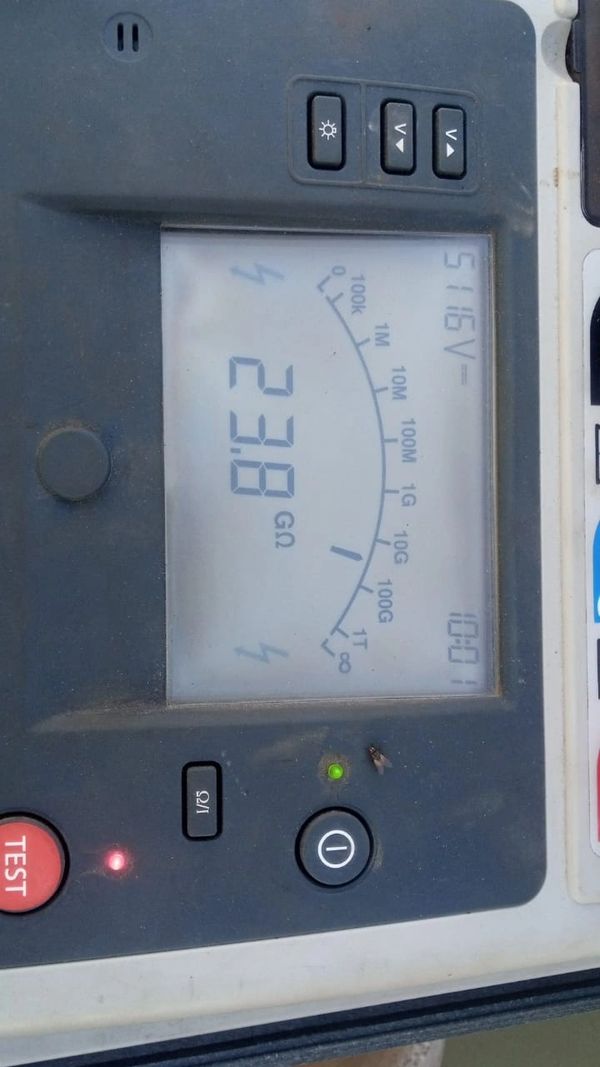

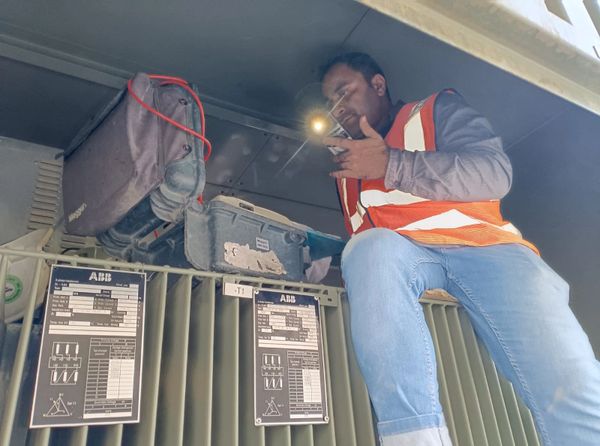

1. Insulation resistance test (Megger test)

  • Measures the insulation resistance between windings and between windings and the ground.
  • Ensures proper insulation and detects any weaknesses.

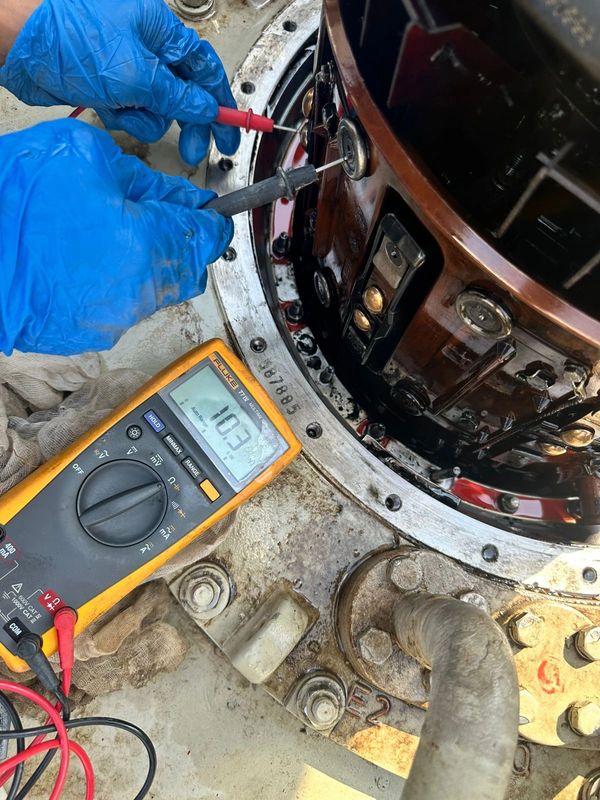

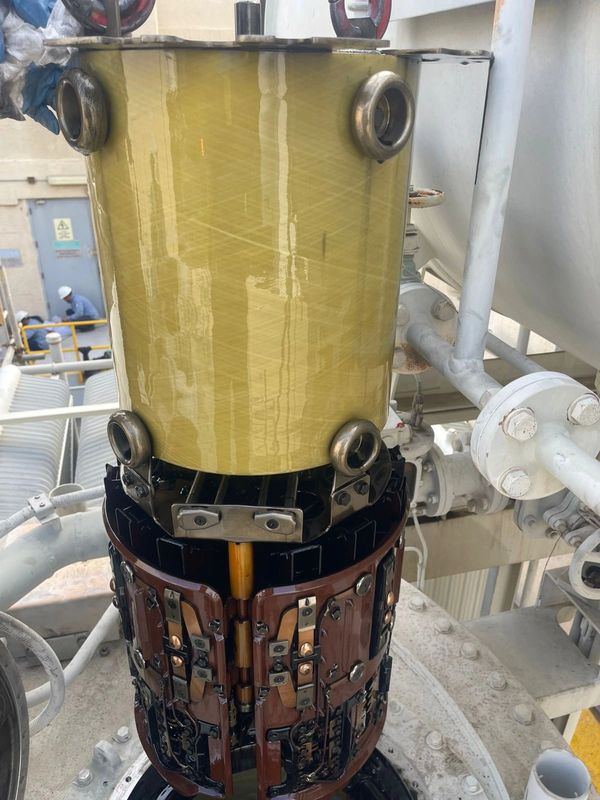

2. Winding resistance test

  • Measures the resistance of transformer windings using a low-resistance ohmmeter.
  • Helps identify issues such as loose connections or damaged conductors.

3. Ratio Test (Turn ratio test)

  • Checks the voltage ratio of primary to secondary windings to ensure correct transformation.
  • Done using a turns ratio meter.

4. Polarity and Phase Relation Test

  • Ensures the correct polarity of windings and verifies phase displacement.
  • Important for parallel operation of transformers.

5. Short-Circuit Test (Impedance Test)

  • Determines the impedance voltage and short-circuit losses.
  • Helps in designing protective devices.

6. No-Load Loss and Current Test

  • Measures core losses and magnetizing current at rated voltage.
  • Ensures efficiency and core material quality.

7. Dielectric Tests (High Voltage Tests)

  • Separate Source Voltage Withstand Test: Applies a high voltage to check insulation strength.
  • Induced Overvoltage Test: Ensures winding insulation can withstand higher voltages.

8. Leakage Test (Oil Leakage Test)

  • Performed on oil-filled transformers to check for oil leaks in the tank and bushings.

9. Magnetic Balance Test

  • Checks the magnetic balance of a three-phase transformer to detect faults in the core or windings.

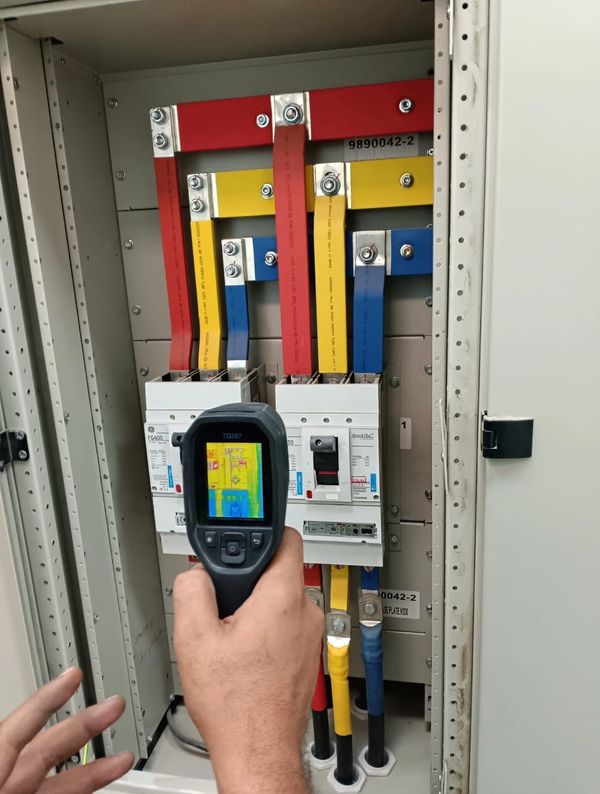

10. Functional Tests of Protection and Control Equipment

  • Verifies the proper operation of Buchholz relays, pressure relief devices, and temperature indicators.

These routine tests ensure the transformer operates reliably and safely in service. Let me know if you need more details on any specific test!


Special tests for transformers are conducted in addition to routine tests, usually to assess specific performance characteristics, ensure compliance with customer requirements, or diagnose potential issues. These tests are not mandatory for all transformers but are often required for critical applications.

  1. Lightning Impulse Test: Checks insulation against lightning surges.
  2. Temperature Rise Test: Ensures the transformer operates safely under full load.
  3. Short-Circuit Withstand Test: Tests the mechanical strength under fault conditions.
  4. Switching Impulse Test: simulates switching transients in high-voltage transformers.
  5. Zero-Sequence Impedance Test: Helps in system fault analysis and neutral grounding.
  6. Capacitance & Tan Delta Test: Evaluates insulation condition.
  7. Insulation Resistance Test: Checks insulation health.

These tests help verify the transformer's design, safety, and operational performance. Let me know if you need more details on any specific test!


Special tests for transformers are conducted in addition to routine tests, usually to assess specific performance characteristics, ensure compliance with customer requirements, or diagnose potential issues. These tests are not mandatory for all transformers but are often required for critical applications. Below are the key special tests performed on transformers:

1. Lightning Impulse Test

  • Simulates the effect of lightning strikes by applying a high-voltage impulse to the transformer.
  • Ensures insulation can withstand sudden voltage surges.

2. Switching Impulse Test

  • Performed on high-voltage transformers (typically 400 kV and above).
  • Simulates voltage surges due to switching operations in the power system.

3. Temperature Rise Test

  • Determines the transformer's ability to dissipate heat under full load conditions.
  • Helps verify the thermal stability of insulation and cooling systems.

4. Short-Circuit Test (Dynamic Ability Test)

  • Evaluates the mechanical strength of windings under sudden short-circuit conditions.
  • Ensures that windings can withstand high electromechanical forces.

5. Partial Discharge Test

  • Detects internal insulation defects by measuring partial discharge levels.
  • Ensures insulation integrity and helps prevent future failures.

6. Noise Level Test

  • Measures the sound levels generated by the transformer under load and no-load conditions.
  • Ensures compliance with noise regulations.

7. Harmonic Analysis of No-Load Current

  • Determines the harmonic content in the no-load current.
  • Helps assess the quality of core material and design.

8. Zero Sequence Impedance Test

  • Determines the impedance of a three-phase transformer under zero-sequence conditions.
  • Important for fault analysis and grounding system design.

9. Tank Pressure Test

  • Checks the mechanical strength of the transformer tank by applying internal pressure.
  • Ensures the tank can withstand pressure variations during operation.

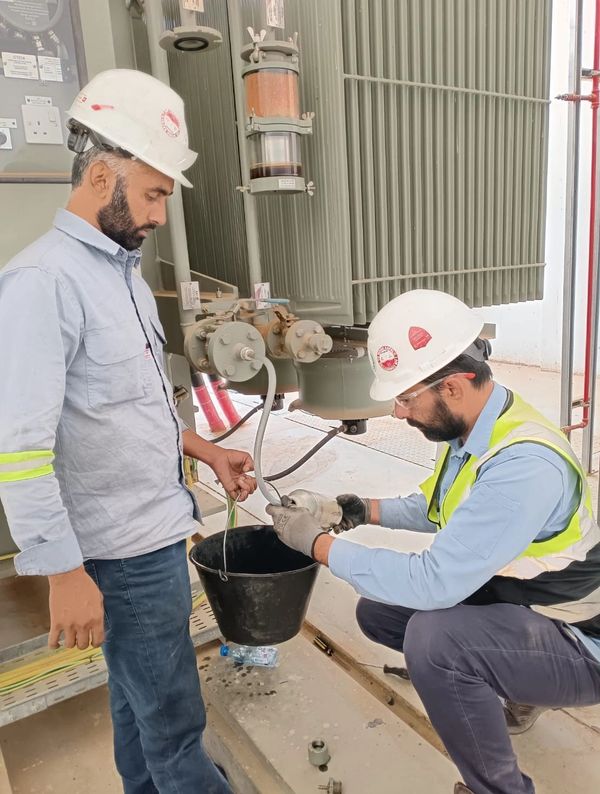

10. Insulation Oil Tests

  • Conducted for oil-filled transformers to assess oil quality and insulation properties.
  • Includes Breakdown Voltage (BDV) Test, Moisture Content Test, DGA (Dissolved Gas Analysis), and Acidity Test.

11. Measurement of Stray Losses

  • Determines the losses occurring due to leakage flux outside the core and windings.
  • Helps improve efficiency and reduce unnecessary heating.

12. Overload Test

  • Simulates overload conditions to verify transformer performance under excessive load.
  • Ensures the transformer can handle short-term overloads safely.

Special tests are typically performed based on customer requirements, standards (IEC, IEEE, IS, etc.), and operational needs. Let me know if you need further details on any test!
